MSI AMD B650I EDGE WIFI AM5 PCIe4 DDR5 Mini-ITX Motherboard AMD EXPO
MSI MPG B650I EDGE WIFI, AMD B650, S AM5, DDR5, SATA3, PCIe 4.0, 2x M.2, 2.5GbE, AMD EXPO™, Mini-ITX
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Frequently Bought Together
MSI MPG B650I EDGE WIFI AM5 m-ITX Motherboard
Ready For the 7000 SeriesThe MPG B650I EDGE WIFI employs a stunning silver and white colour scheme with RGB lighting showcasing a lighter personality against the dark of the carbon whilst ensuring reliable, robust performance delivery in a minute form factor. Developed to unlock the full gaming potential of the AMD B650 chipset and brand-new 7000 series processors by combining elite hardware and premium durability, the MEG B650I EDGE WIFI boasts, an enhanced 8+2+1 phase aggressive power design, a maximum of 2x M.2 connectors for impressive storage (2x Gen4), an outstanding cooling solution including, extended heatsinks, high-end thermal pads & M.2 Shield Frozr technology. Lightning Gen4 PCIe, DDR5 memory, WiFi 6E connectivity and a D.I.Y friendly design ensures extraordinary performance and style. MSI MPG series defines the future of gaming fashion.
AMD B650Chipset
AM5CPU Socket
AMD Ryzen™ 7000 SeriesCompatible CPU
m-ITXForm Factor
Outstanding Cooling Solution
Extended
Heatsinks
M.2
Shield Frozr
7W/mK MOSFET Thermal Pads
Pump Fan
Support
High-Speed Transmission
2.5G LAN
WIFI
6E
PCIE 4.0
Slots
DDR5
Memory Support
Lightning
USB 20G
Front USB Type-C
A Stable Cornerstone for Your System
Steel PCIe
armor
preinstalled
IO Shield
8+2+1 Phases
VRM Power
10 Layer
PCB
EZ DEBUG
LED
BIOS Flashback
Button

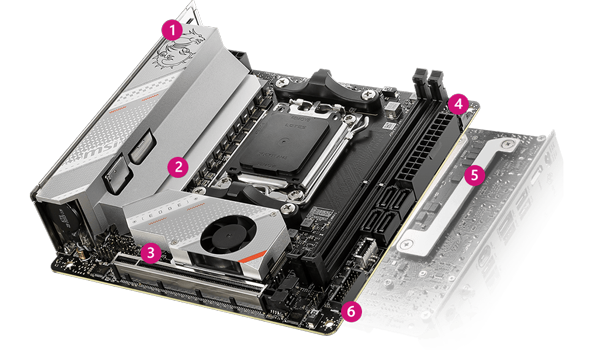

Massive Cooling Potential
1. Extended HeatsinksLarge extended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.
2. 7W/mK Thermal PadHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
3. M.2 Shield Frozr With double ball bearings fan to keeps M.2 SSDs safe while preventing throttling, making them run faster.
4. Pump Fan Support Control your watercooling pump speeds for superior flow and noise control.
5. MOSFET Baseplate Baseplate on the back to keep MOSFET in lower temparature, ensuring better heat dissipation effect.
5. 10-Layer Server Grade PCB 10-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

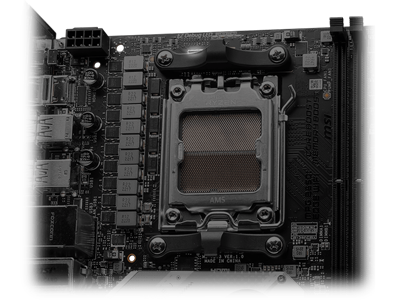

Aggressive Power Design
8 PhaseVCore Power Stage
2 PhaseSOC Power
1 PhaseMISC Power
Direct 8+2+1 CPU POWER DESIGNUnleash and sustain the maximum performance with a strong VRM design built with a total of 8+2+1 phases. Combining 80A Smart Power Stage, the MPG B650I EDGE WIFI is ready for high-end AM5 processors.
Embrace Lightning Speeds
LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
MSI Steel Armor SlotMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Maximise Your Storage Capabilities
Fast and future ready storageMSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

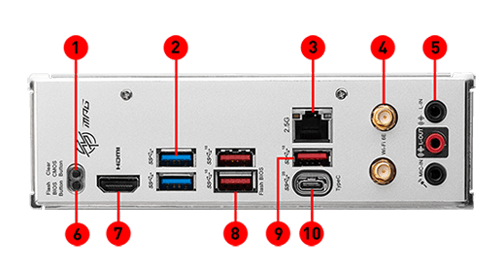

Fully Comprehensive I/O Panel
Rear:
1: Clear CMOS Button
2: USB 3.2 Gen 1 5Gbps (Type-A)
3: 2.5G LAN
4: Wi-Fi / Bluetooth
5: Audio Connectors
6: Flash BIOS Button
7: HDMI™
8: USB 3.2 Gen 2 10Gbps (Type-A))
9: USB 3.2 Gen 2 10Gbps (Type-A)
10: USB 3.2 Gen 2x2 20Gbps (Type-C)
