Ubiquiti UniFi Outdoor Mesh Pro Dual Band PoE Access point

Powerful Coverage

The Ubiquiti UniFi AC Outdoor Mesh Pro Wifi Access Point (UAP-AC-M-PRO) offers powerful coverage with its built-in dual-band omni-directional antennas. Outdoor ranges of up to 183m (600 feet) are possible, as well as simultaneous dual-band coverage via the 802.11ac enabled 3x3 MIMO connection, offering speeds of up to 1300 Mbps on the 5GHz band and up to 450 Mbps on the 2.4 GHz band.

The UAP-AC-M-PRO has multiple power options, enabling users to power via an 802.3af PoE compatible switch and can be powered over 48V PoE, or a 802.3af Alternative A compatible switch, or the included Gigabit PoE adapter. It also features dual Gigabit Ethernet ports, the main port is for data transfer and the second port is designed for bridging.

Weather-Resistant Form Factor

The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it ideal for outdoor deployment.

LED Indicators

Unique provisioning LED provides administrator location tracking and alerts for each device.

Powerful Coverage

Built-in dual-band omni-directional antennas deliver expanded range coverage outdoors.

Mounting Flexibility

The UniFi AC Mesh Pro AP can be mounted on a wall or pole. (All accessories are included).

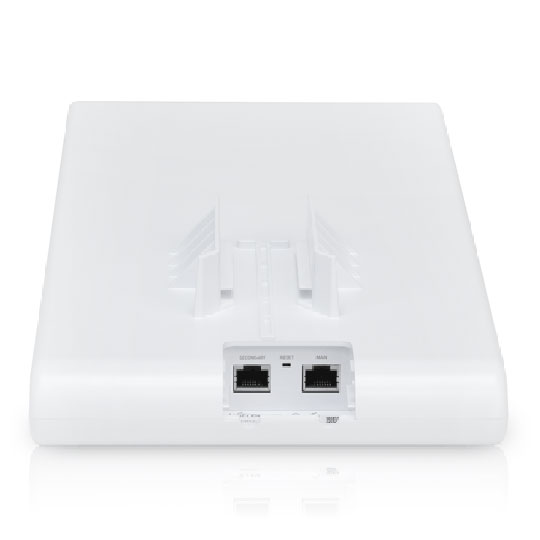

Dual Gigabit Ethernet Ports

The primary port is for data and PoE; the secondary port is for bridging.

Multiple Power Options

You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter.

UniFi Controller

Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.

RF Map

Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.

Powerful RF Performance Features

Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.

Detailed Analytics

Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.

Wireless Uplink

Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink - so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.

Guest Portal/Hotspot Support

Easy customisation options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.

All UniFi APs include Hotspot functionality:
• Built-in support for billing integration using major credit cards.
• Built-in support for voucher-based authentication.
• Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
• Full customisation and branding of Hotspot portal pages.

Multi-Site Management

A single cloud-based UniFi Controller can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and admin read/write and read-only accounts.

WLAN Groups

Manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.
